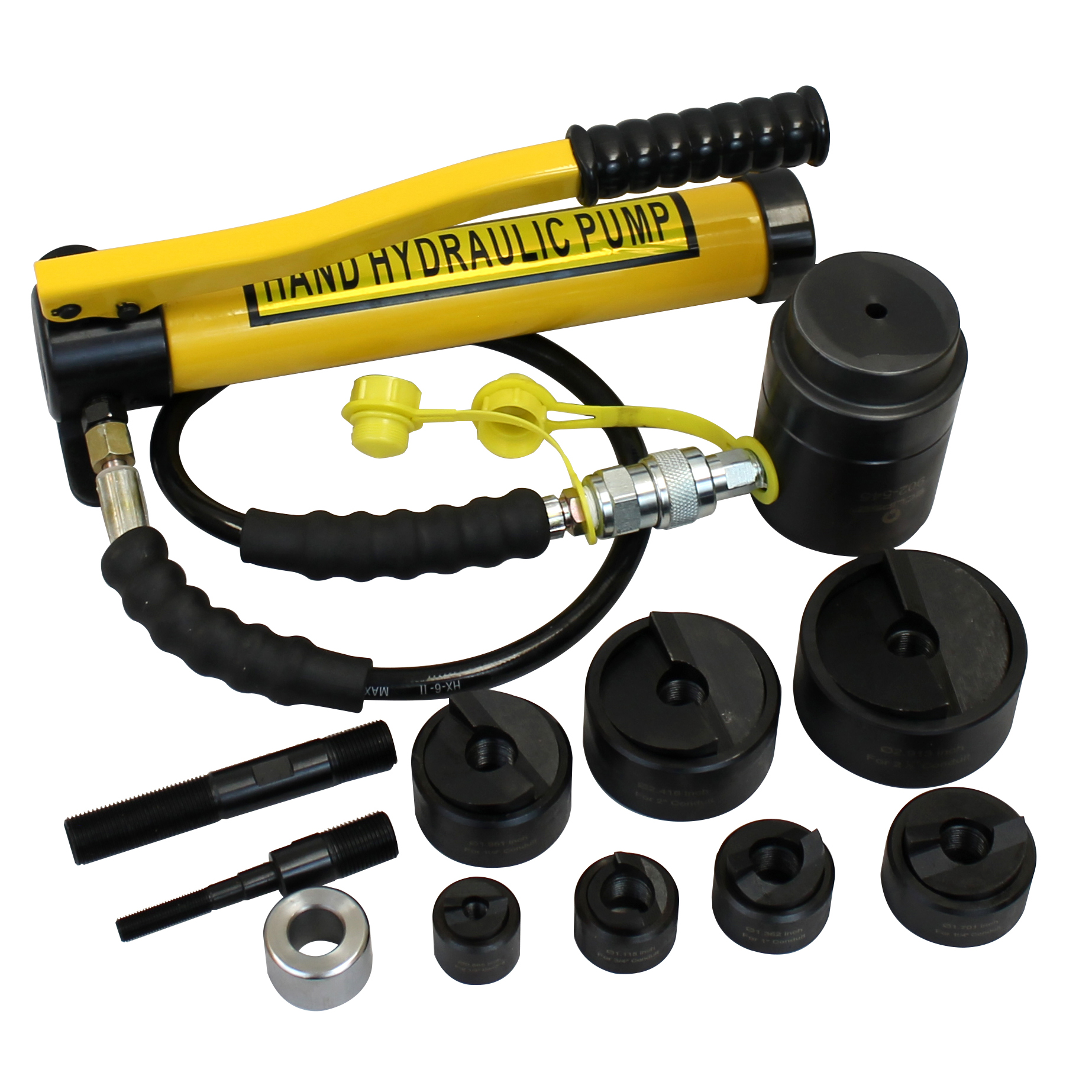

The TuffPunch 15 Ton Hydraulic Knockout Set provides 15 tons hydraulic force with an easy, one-person operation. Hydraulic tools provide a greater level of force than hand tools, and the punch/die sets are easily changed and leave no burns or rough/sharp edges. In addition, its two-piece design allows the crimp head to get into tight spaces. This knockout punch has a punching range of ½ ~ 2 ½” inches, up to 10 gauge mild steel. Included in this set are Slug-splitting punch dies, square knockout punches, draw studs and spacer.
Includes:
- Slug-splitting punch dies: ½ ~ 1 ½”

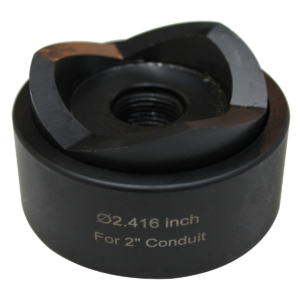

- Standard punch dies: 2 ~ 2 ½”
- 3/8″ x 3/4″ draw stud x 1 pc
- 3/4″ x 3/4″ draw stud x 1 pc
- Spacer x 1 pc
Specifications:
| Punch range | 1/2 – 4″ conduit (3, 3.5, 4″ Type D available with optional accessory punch set 902-546) Can cut stainless steel but punches will wear much sooner |
| Punching force | 15 Ton |
| Stroke | 25 mm |
| Weight | 15.7 lbs |

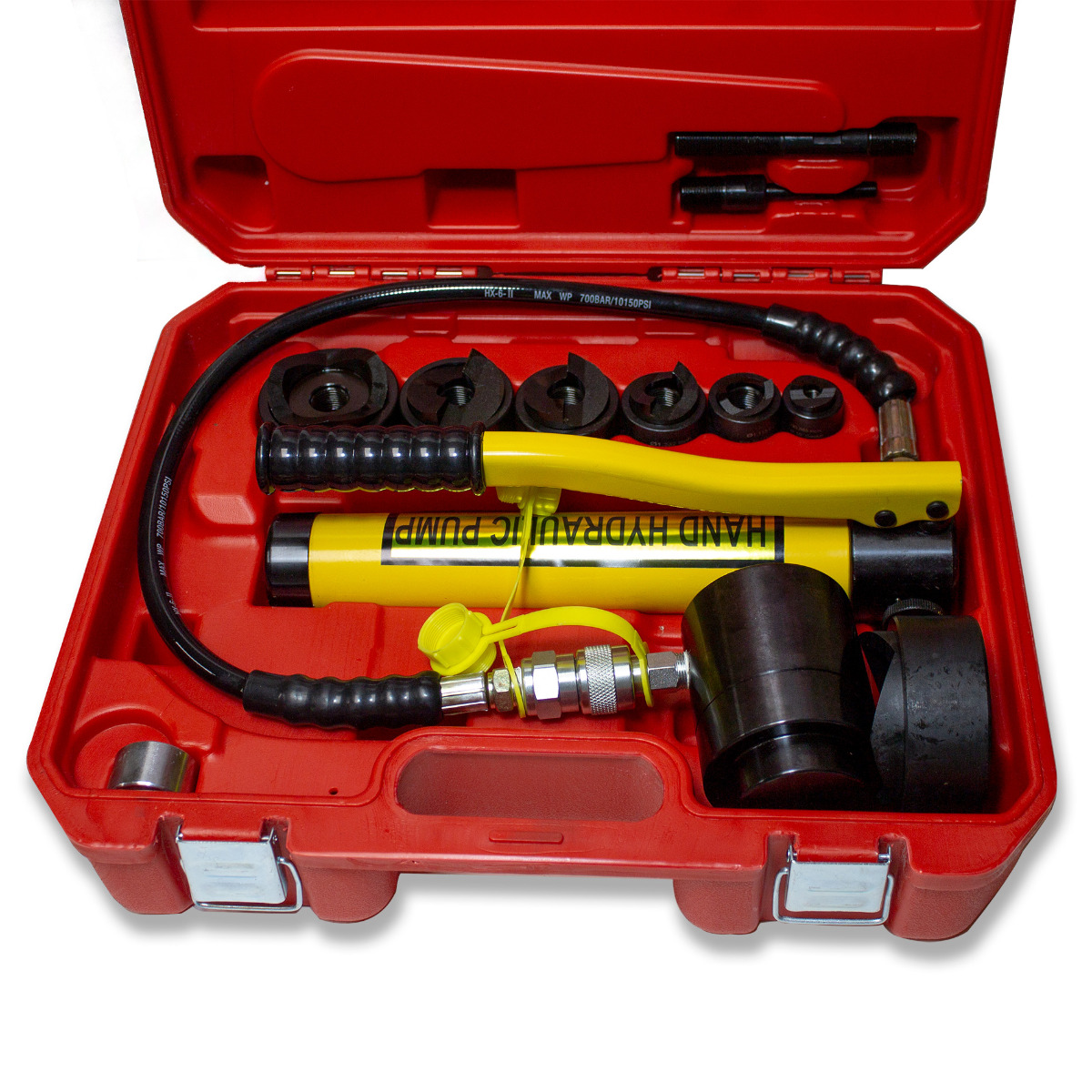

| Package | Molded Plastic Storage Case |
| Weight of box | 9.7 lbs |
