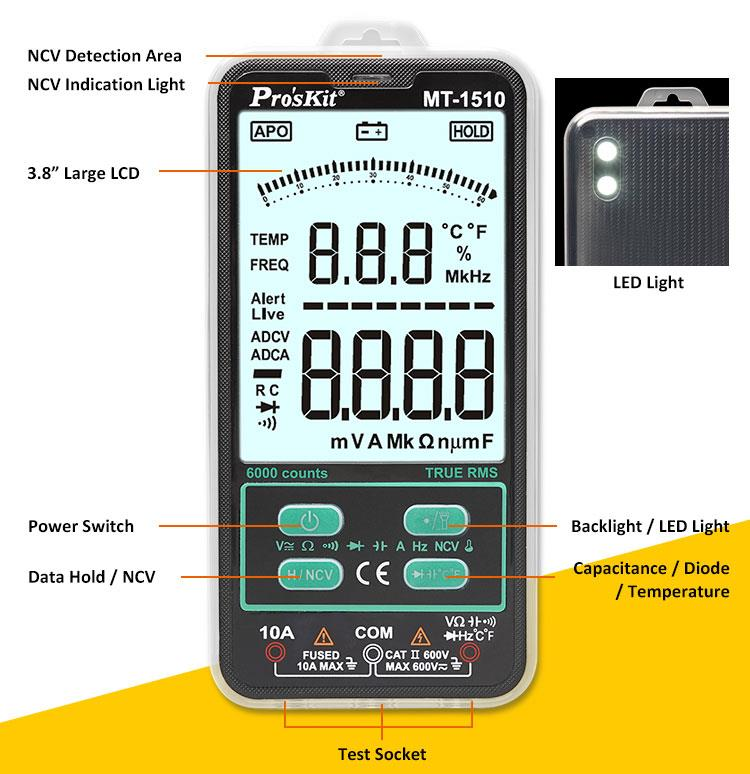

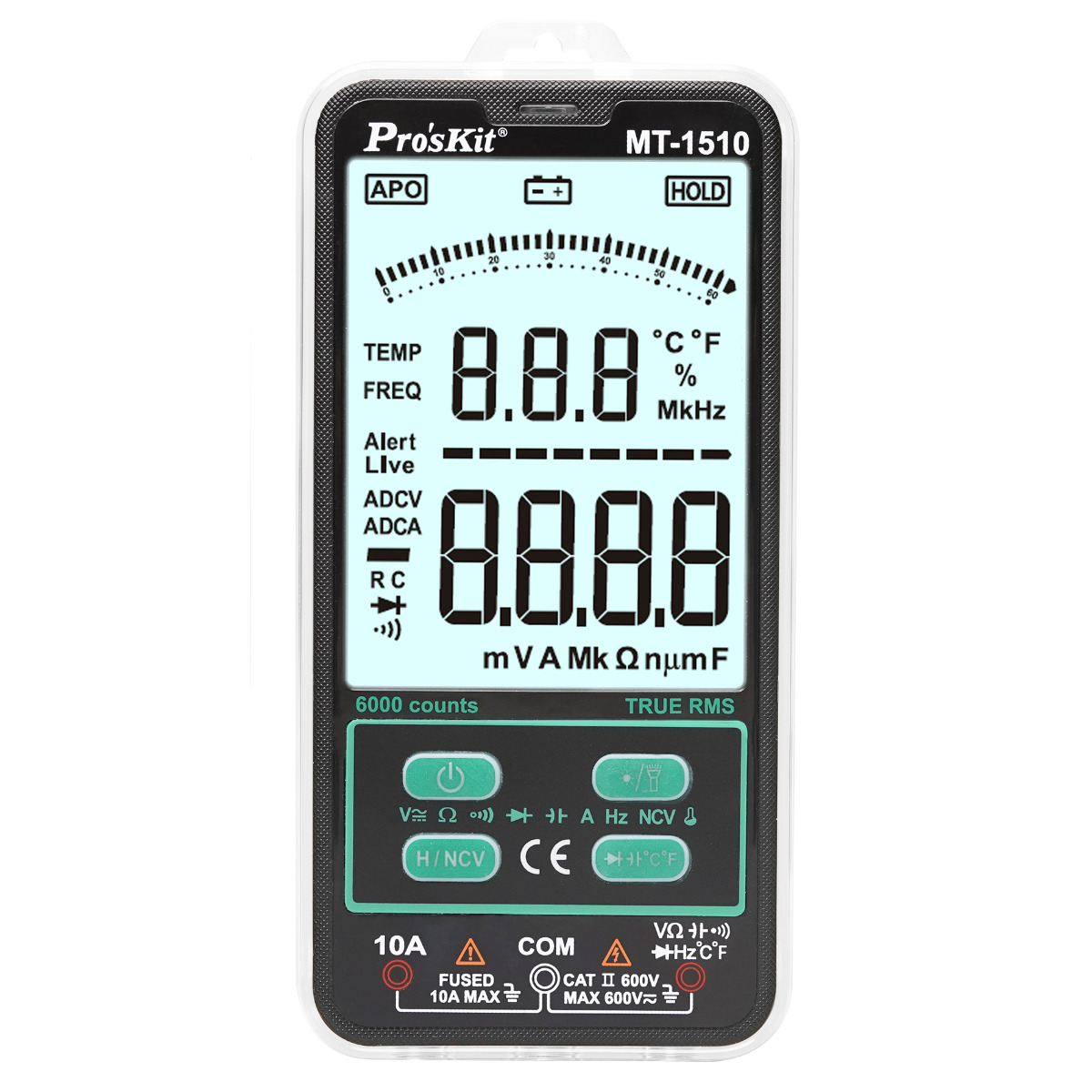

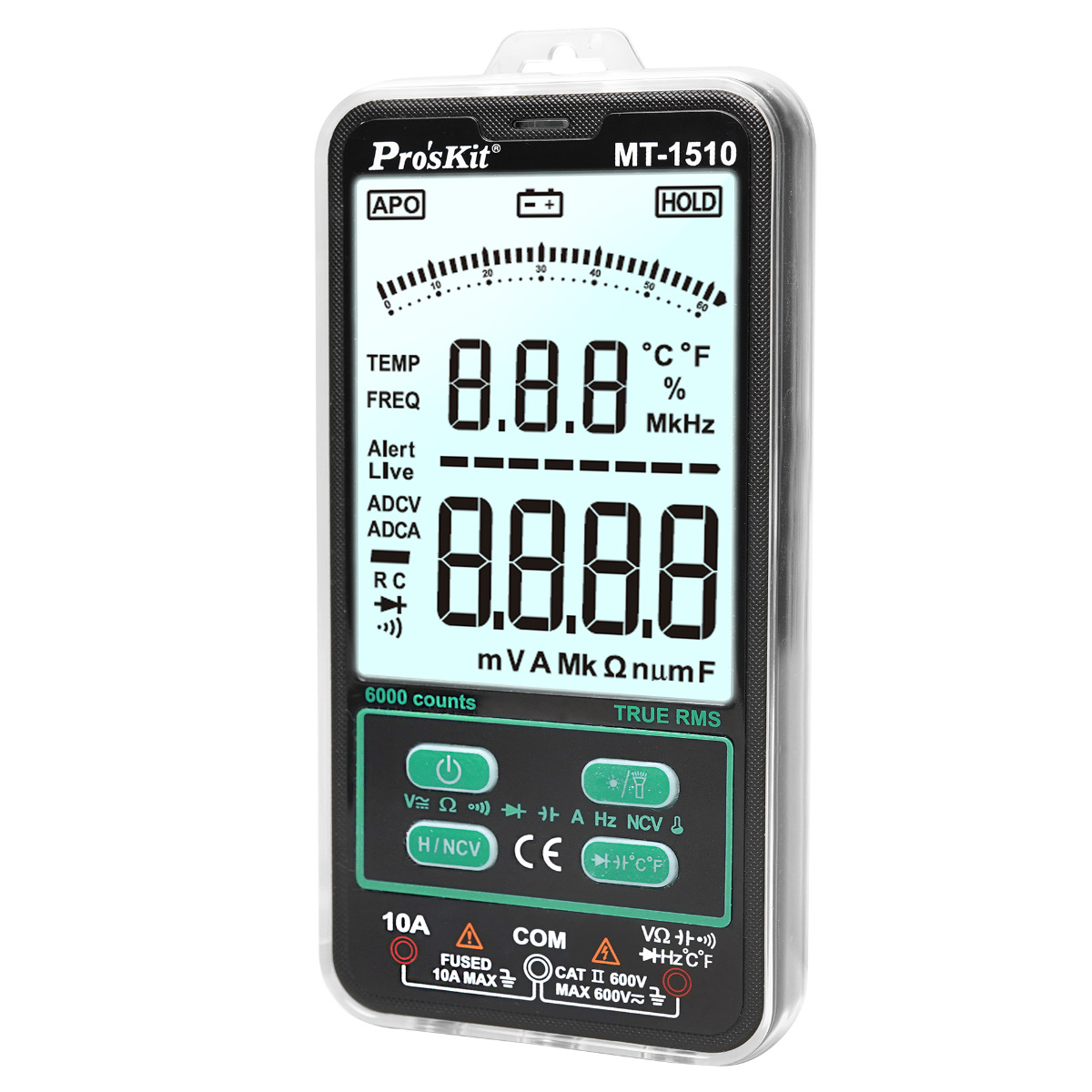

Pocket Size True-RMS Auto-Range Multimeter

List Price:

$39.99

Compact size, similar to iPhone
Autoranging function
True-RMS measurement

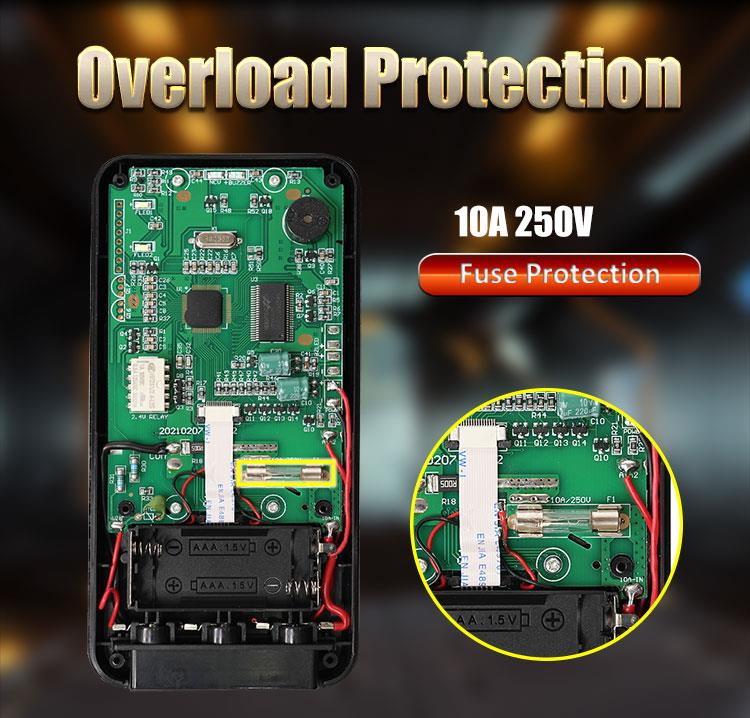

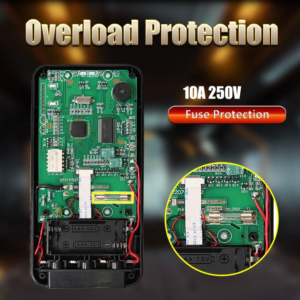

Overload protection

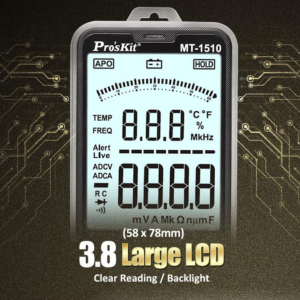

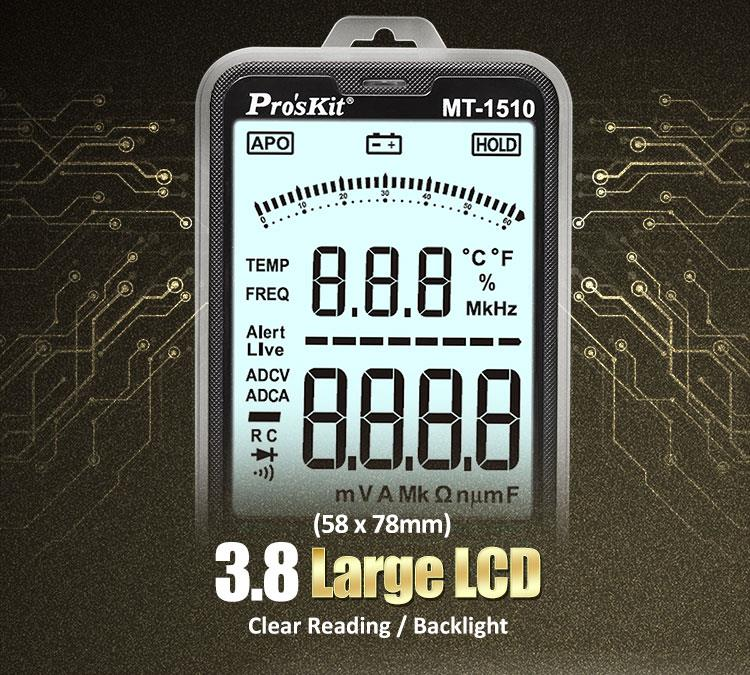

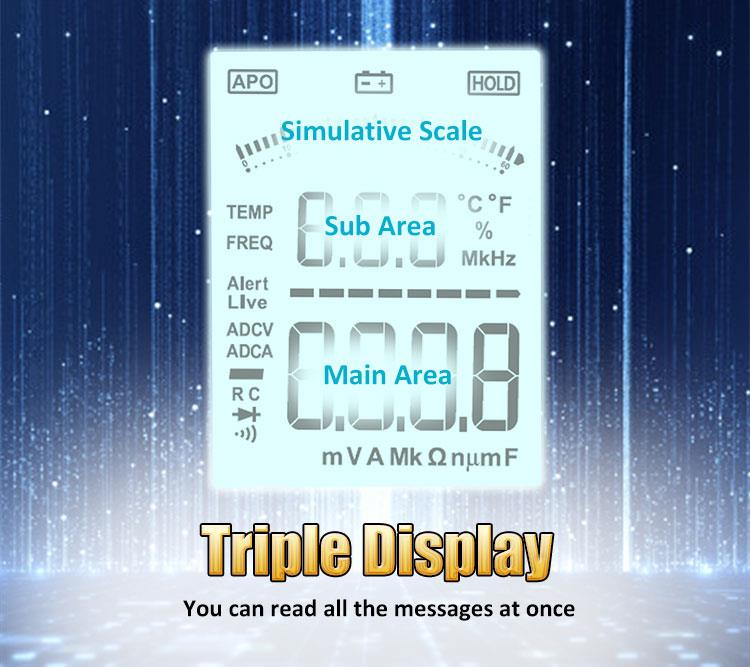

Large LCD
Includes test leads

SKU: MT-1510
Categories: , ,
Brand:
Display 3 5/6

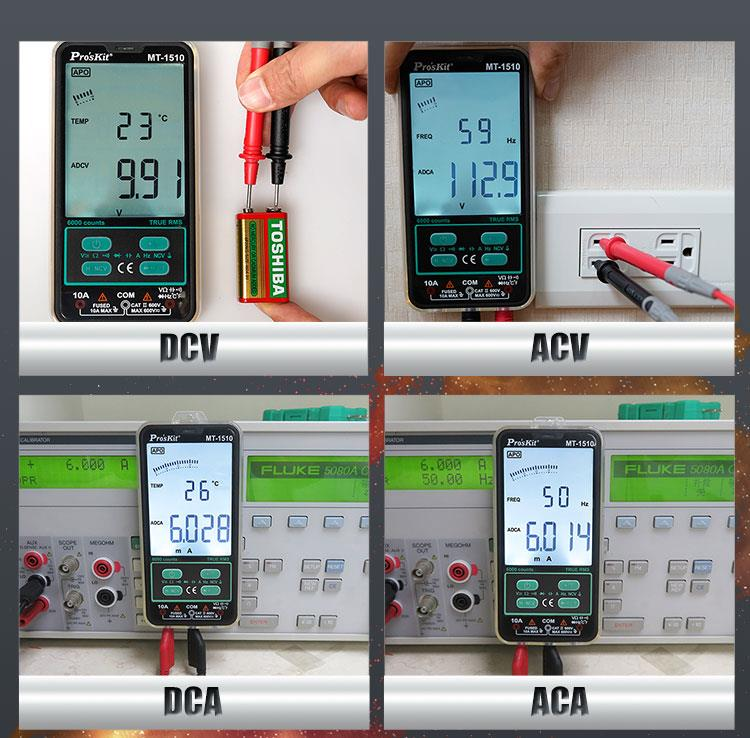

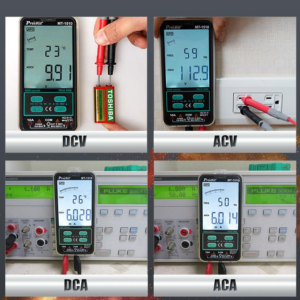

DCV 6V/60V/600V±(0.8%+5d)
ACV 6V/60V/600V±(1.0%+5d) True-RMS
DCA 1000mA/10A±(2.0%+5d)
ACA 1000mA/10A±(2.0%+5d) True-RMS

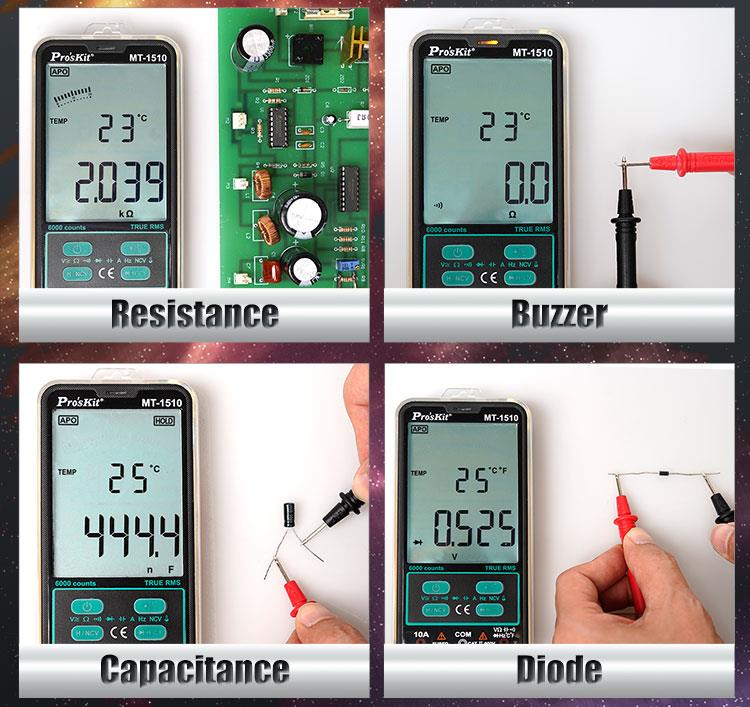

Resistance(Ω) 600Ω/6K/60K/600K/6M/60MΩ±(1.0%+5d)
Capacitance 6nF/60nF/600nF/6μF/60μF/600μF/6mF/100mF±(4.0%+5d)
Temperature  -4°F~986°F±(3%+5d) / -20°C~530°C±(3%+5d)
Frequency 1000Hz/6KHz±(2.0%+5d)
Safety CATII 600V
Battery 1.5V AAA x2
Dimensions 5.9 x 3.0 x 0.7 inches
Weight 0.77 lbs
Dimensions 7 × 4 × 2 in
