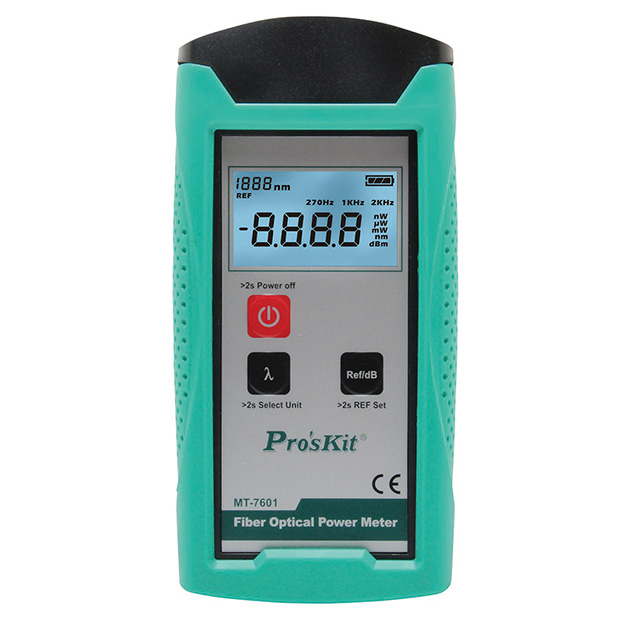

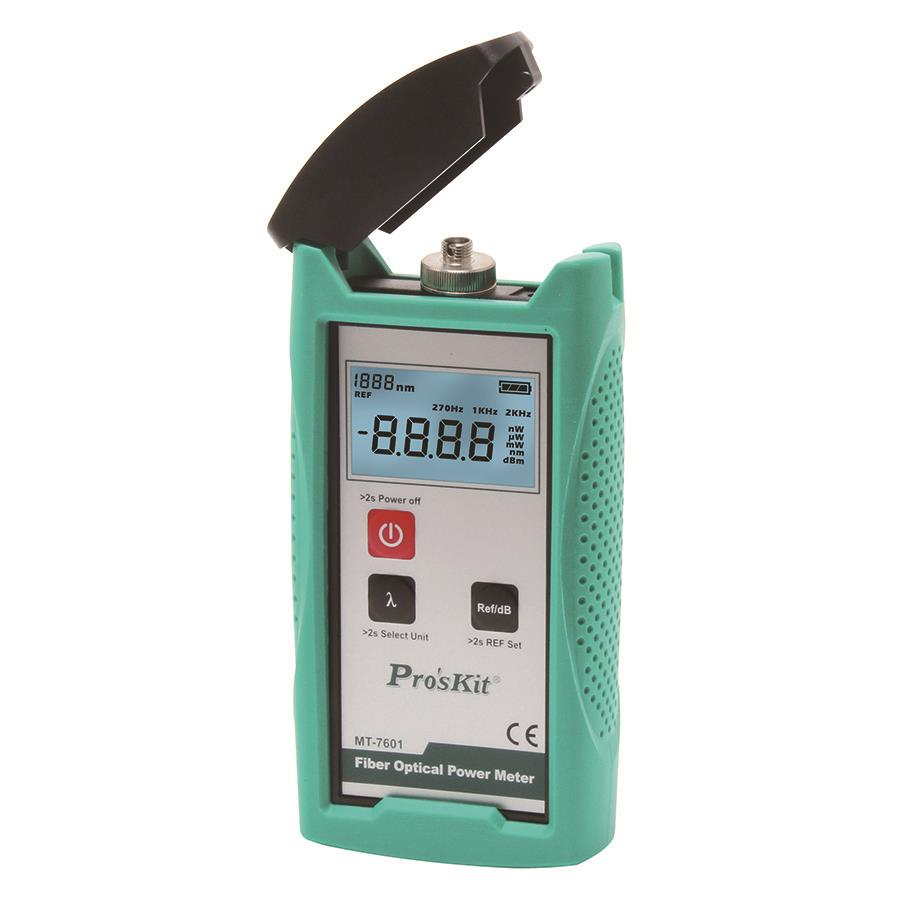

An essential fiber test instrument used for absolute optical power measurement as well as fiber optic relative loss measurement. Easy to use for Telecommunication networks & FTTx/FTTH applications.
|
Detector Type |
InGaAs |
|
Optical Connector |
FC/SC/ST & 2.5mm Universal |
|
Calibrated Wavelengths |
|
|
Measurement Range |
+6 ~ -70 dBm |
|
Accuracy |
± 0.2 dB |
|
Power Measurement Linearity |
±2.0% |
|
Display Resolution |
+6～-60dBm：0.01 dB , -60～-70dBm：0.1 dB |
|
Power Display Units |
dBm, mW, μW, nW |
|
Reference Comparison Value |
Yes |
|
Modulation Detection |
270Hz, 1KHz, 2KHz |
|
Operation Voice Prompts |
Yes |
|
Backlight |
LED |
|
Automatic Power Off |
10 minutes (Can be cancelled) |
|
Low Battery Warning |
Low battery energy |
|
Body Protected |
Yes |
|
Battery Life |
> 160 hours |
|
Operating Temperature |
-10～+60℃，<90% |
|
Storage Temperature |
-20～+70℃，<90% |
|
Power source |
AA/LR6 1.5V×2 pcs |
|
Size |
165 x 80 X 35 (mm) |
|
Weight |
180g (w/o battery) |
|
Optional Accessory |
LC adaptor (5MT-7601-LC) |
