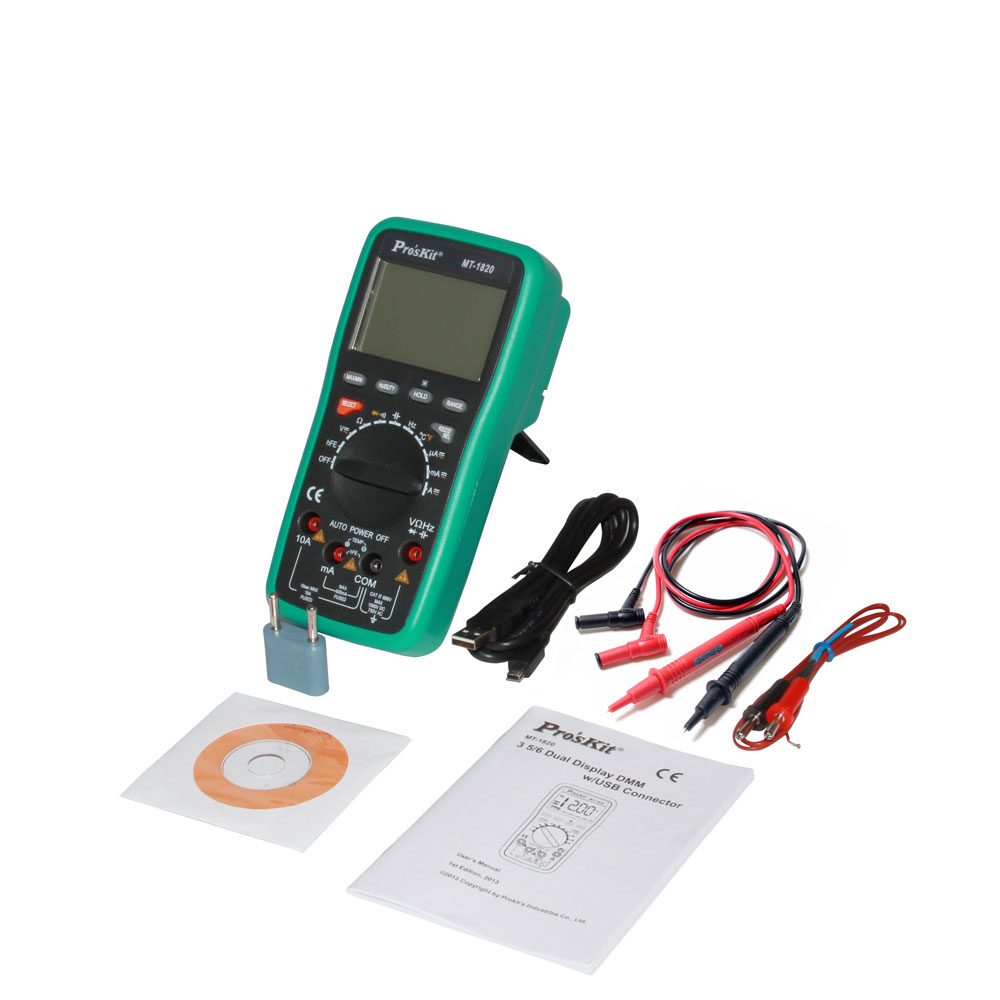

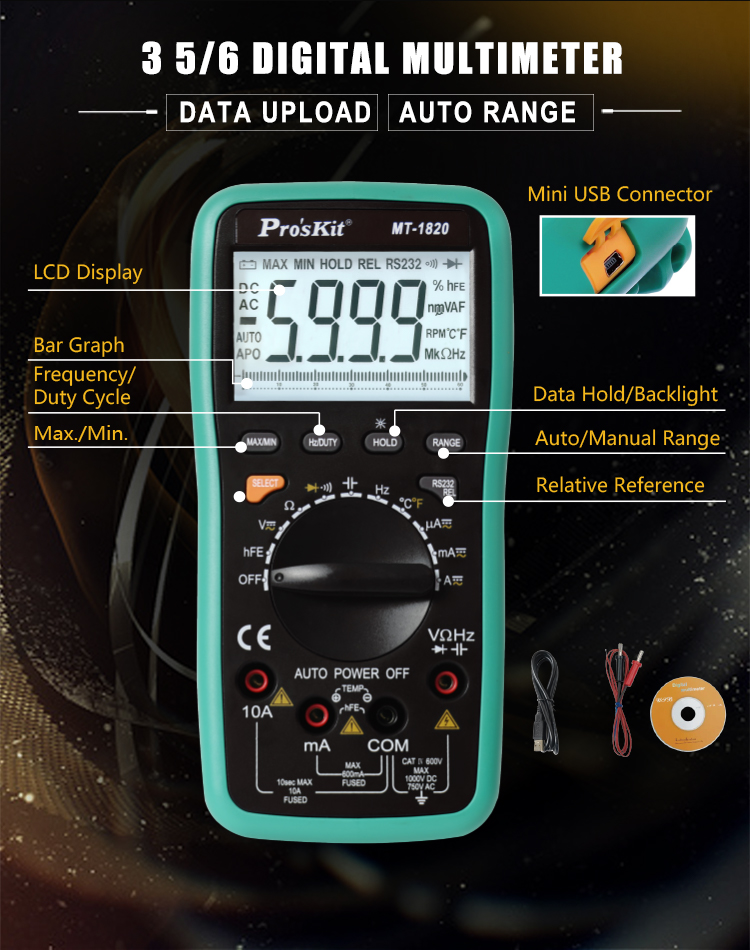

3-5/6 digits 5999 Counts Dual Display Digital Multimeter with USB, Resistance, Frequency, Capacitance, Diode, Transistor Tests

List Price:

$102.18

● 3 5/6 digits 5999 counts, 0.5% best accuracy

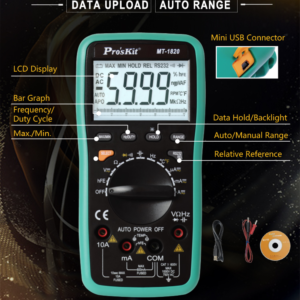

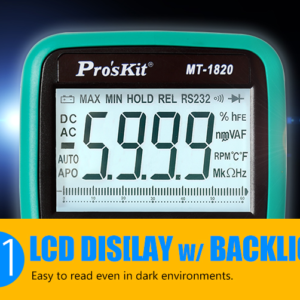

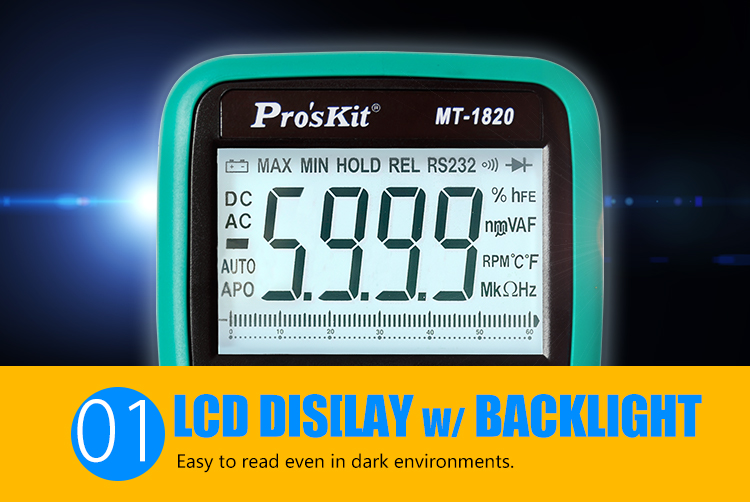

● Dual display with analog bargraph
● Auto/Manual ranging

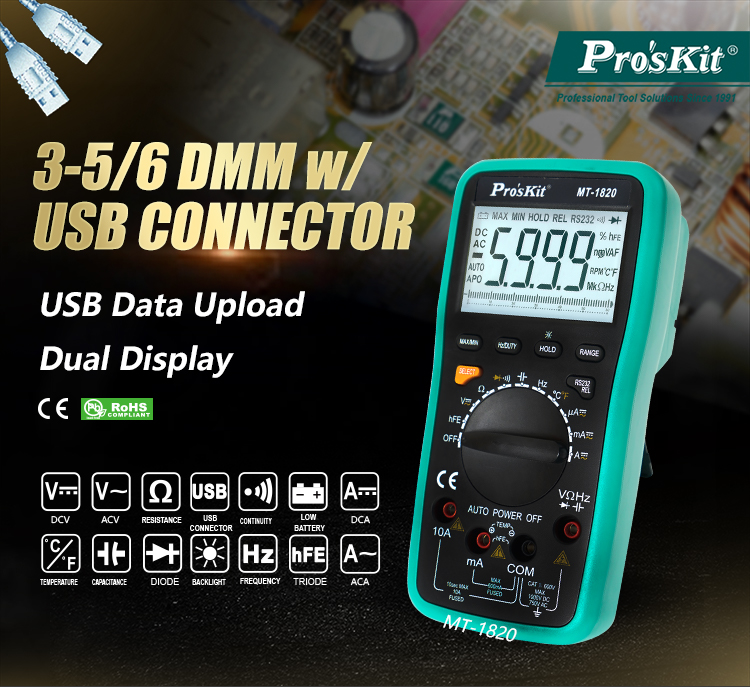

● USB data upload

SKU: MT-1820
Categories: , ,
Brand:

Extra functions: duty cycle, relative reference, Max/Min hold, data hold, auto power off, low battery indication.

Specification
DCV 600m/6/60/600V ±(0.5%+4d), 1000V ±(1.0%+6d)
ACV 6/60/600V ±(0.8%+10d), 750V ±(1.0%+10d)
DCA 600μ/6000μA ±(1.0%+10d),
60m/600mA ±(1.0%+10d),
6/10A ±(1.2%+10d)
ACA 600μ/6000μA ±(1.5%+10d),
60m/600mA ±(1.5%+10d),
6/10A ±(2.0%+15d)
Resistance 600Ω ±(0.8%+5d),
6k/60k/600k/6MΩ ±(0.8%+4d),
60MΩ ±(1.2%+10d)
Frequency 100/1000Hz ±(0.5%+4d),
10k/100kHz ±(0.5%+4d),
1M/30MHz ±(0.5%+4d)
Capacitance 40nF±(5%+30d),
400n/4μ/40μF±(3.5%+8d)
200μF±(5.0%+10d)
Temperature -20~400˚C(0~750˚F) ±(1.0%+5d),
400~1000˚C(750~1832˚F) ±(1.5%+15d)
Continuity with buzzer Y
Diode test Y
Transistor test Y
Power source AAA(1.5V)×2pcs (Not included)
Size 7.6 x 3.7 x 1.9 in.
Weight 1.5 lbs
Dimensions 9 × 6 × 3 in
